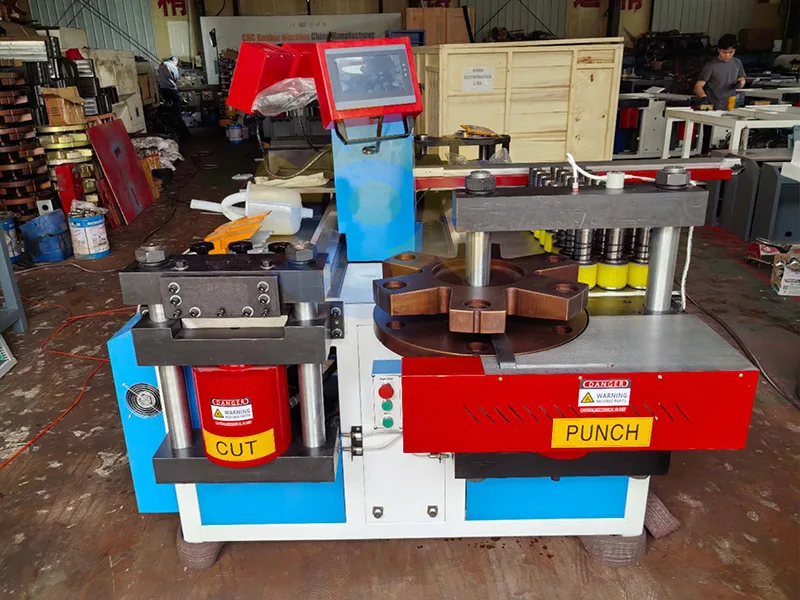

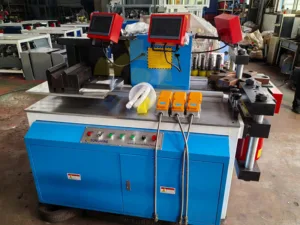

SS-80-3CNC PRO Busbar Bending Machine
function
Basic parameters
description

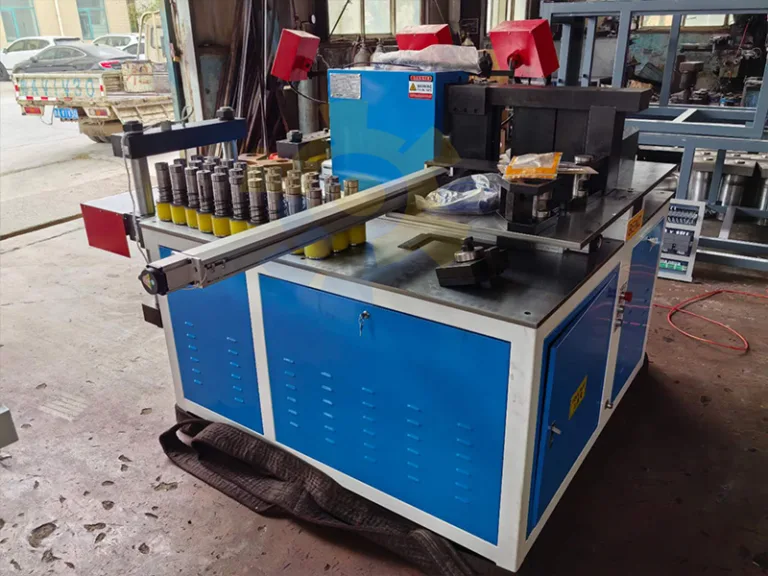

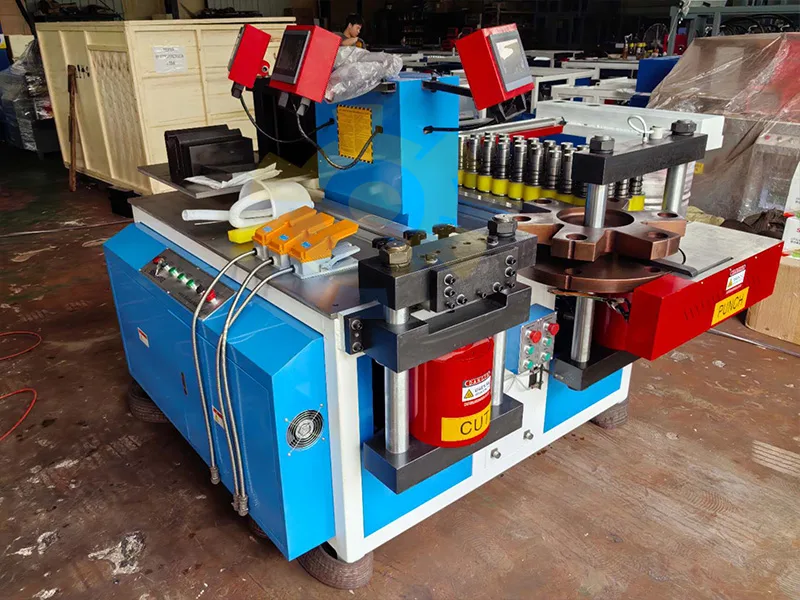

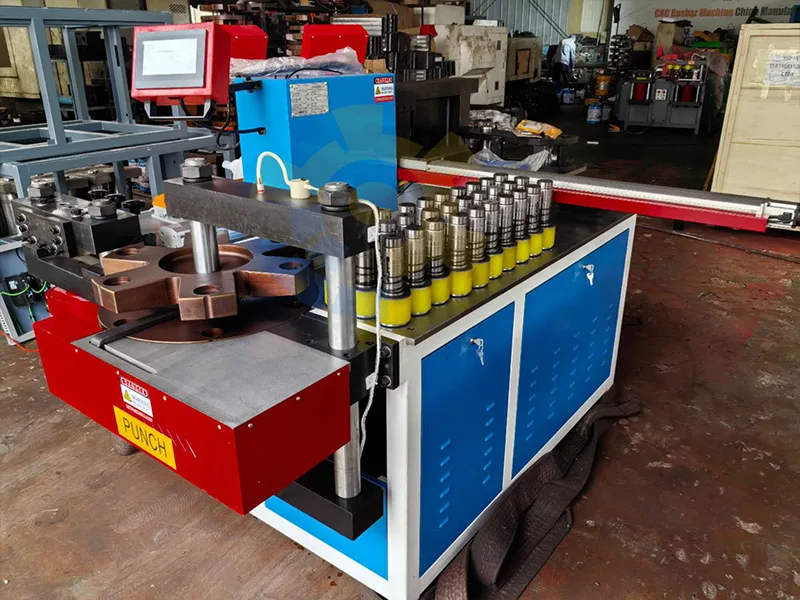

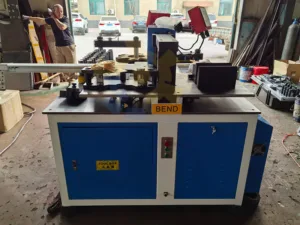

The SS-80-3CNC PRO busbar bending machine utilizes a 7.5 kW motor with a maximum hydraulic output of 800 kN. It can process copper busbars up to 20 mm thick and 300 mm wide, making it ideal for high-voltage switchgear manufacturers, especially those processing very thick copper busbars.

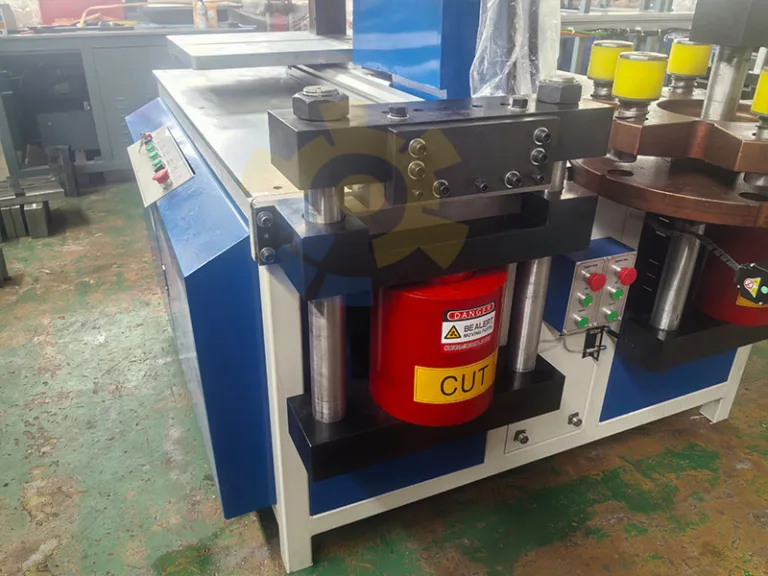

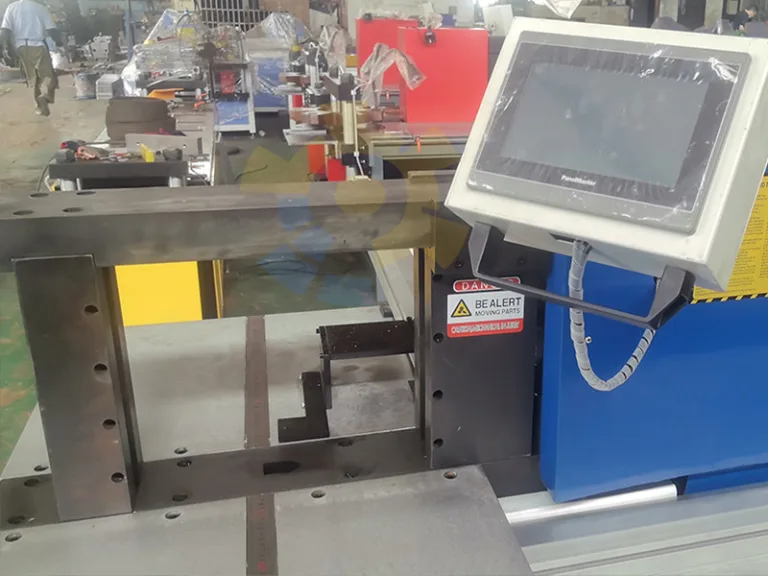

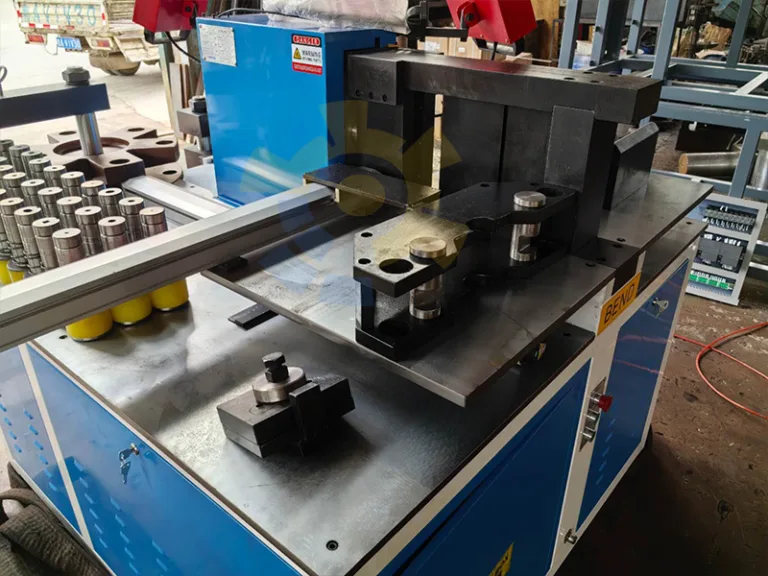

Compared with the SS-80-3CNC busbar processing machine, the SS-80-3CNC PRO has greater advantages in processing efficiency and precision. Its punching, cutting, and bending units are all equipped with PLCs. Servo motors drive high-precision roller screws, replacing manual calibration with a ruler. This automated positioning ensures accurate busbar processing and significantly reduces operator error.
The SS-80-3CNC PRO’s unique features include its ability to process 20mm thick copper busbars, its automated positioning and memory storage. Furthermore, the busbar machine can be operated simultaneously by three people, a key factor contributing to its popularity.
Product Video
parameters
| Model | SS-80-3CNC PRO |
| Max. Thickness | 20mm |
| Max. Width | 300mm |
| Pressure | 800KN |
| Punching Station | 6 |
| Punching Range | Φ4.3－Φ30 |
| Punching Error | ±0.1.5mm/m |
| Punching Length Stroke Limit | 1000mm |
| Punching Width Stroke Limit | 150mm |
| Bending Error | ±0.3º |
| Bending Length Stroke Limit | 1000mm |
| Cutting Length Stroke Limit | 1000mm |
| Motor Power | 7.5KW*3 |
| Servo Motor Power | 400W*4 |
| Voltage | 380V 50HZ(default) |
| PLC | Siemens for Bending+Punching+Cutting |

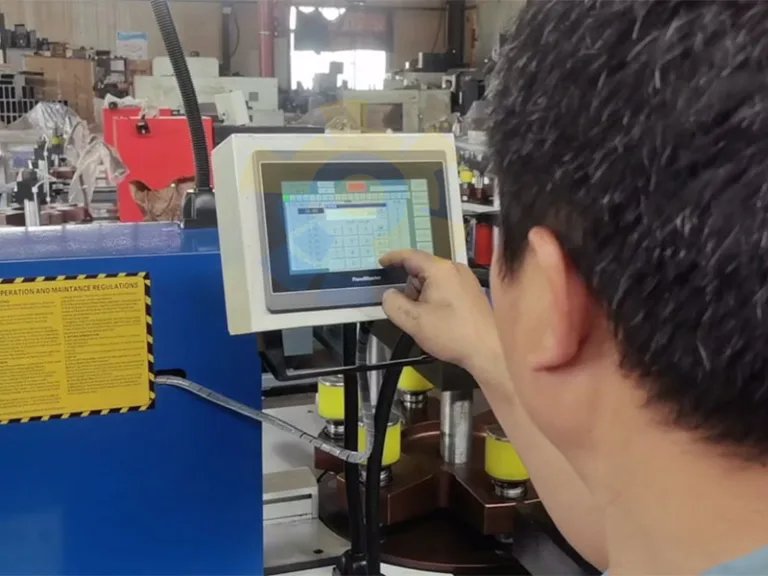

| HIM Mobile Panel | 3sets |
| Language | Chinese/English |
Mold List
| Round Punching Mold | Ø7, Ø9, Ø11, Ø13, Ø17 | 5sets |
| Oval Punching Mold | Ø11×15, Ø13×18, Ø17×21 | 3sets |
| Vertical Bending Mold | R3, R5, R10 | 3sets |
| U-SHAPE Mold | / | 1set |
| Horizontal Bending Mmold | R80 or R50 | 1set |
| Embossing Mold | 300mm | 1set |
| Cutting Mold | / | 1set |
Note: The molds mentioned above are standard configurations. If you need molds with different specifications or for special busbar shapes, our technical team can customize them free of charge. To contact our technical engineer, please email lisa@busbarmac.com.
