SS-50-3CNC Busbar Punching Machine
function
Basic parameters
description

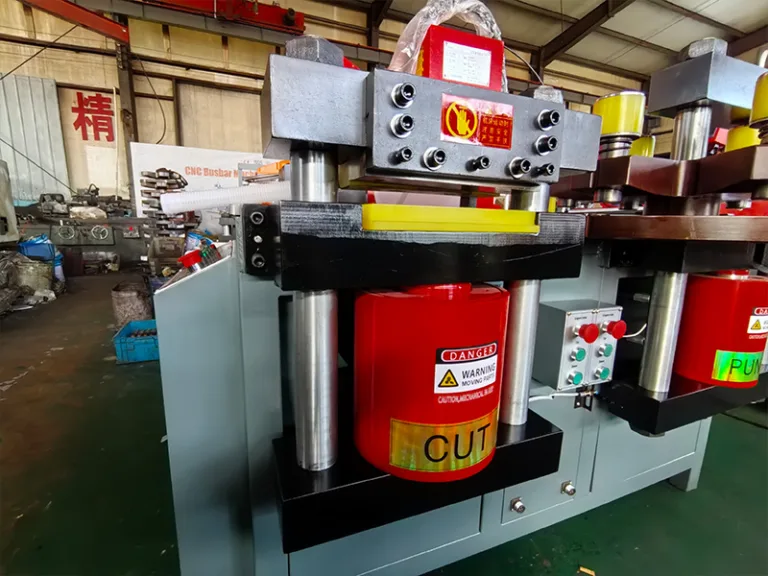

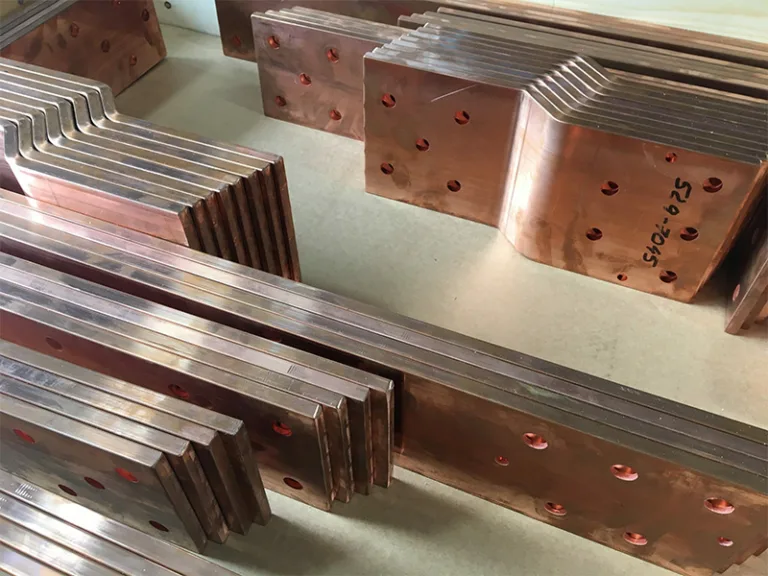

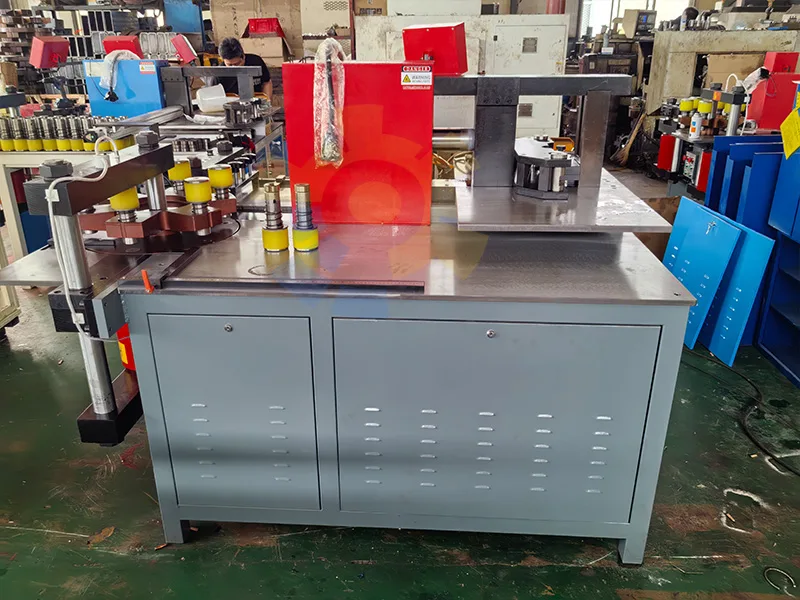

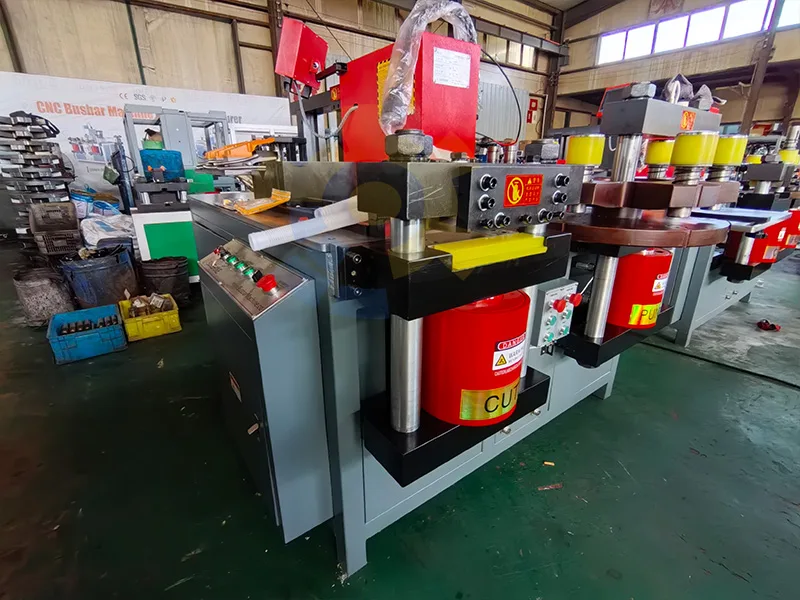

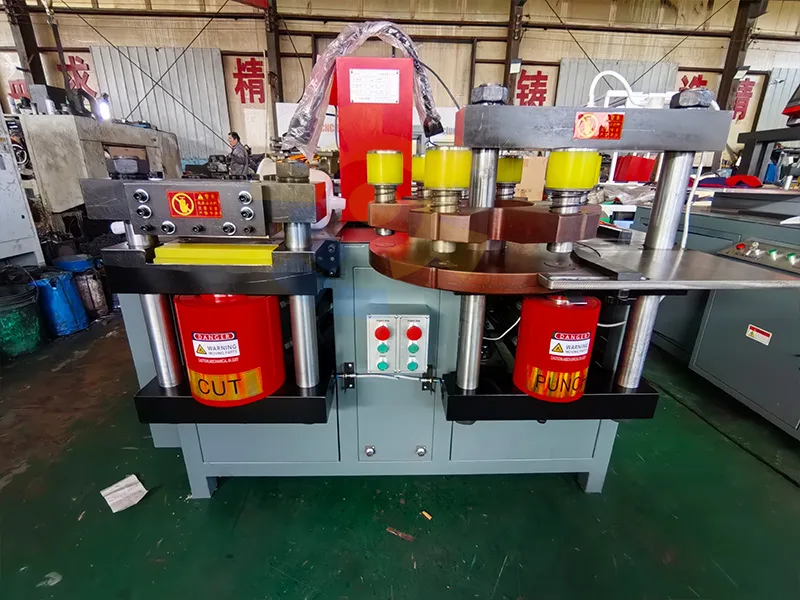

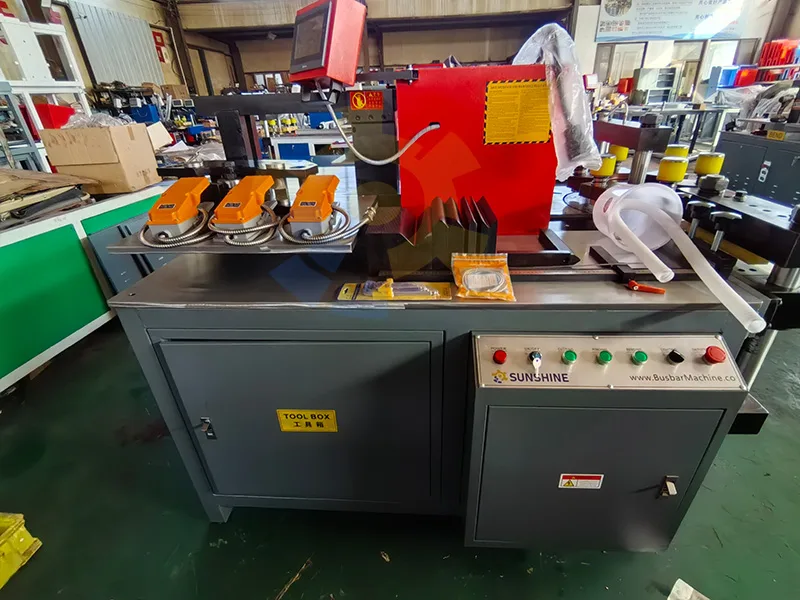

The SS-50-3CNC busbar punching machine is a multifunctional busbar processing machine that integrates punching, cutting, and bending. Powered by three 5.5kW high-quality motors providing hydraulic power, the SS-50-3CNC can process copper busbars up to 16 x 250mm. It can be operated simultaneously by three people, allowing for simultaneous punching, cutting, and bending.

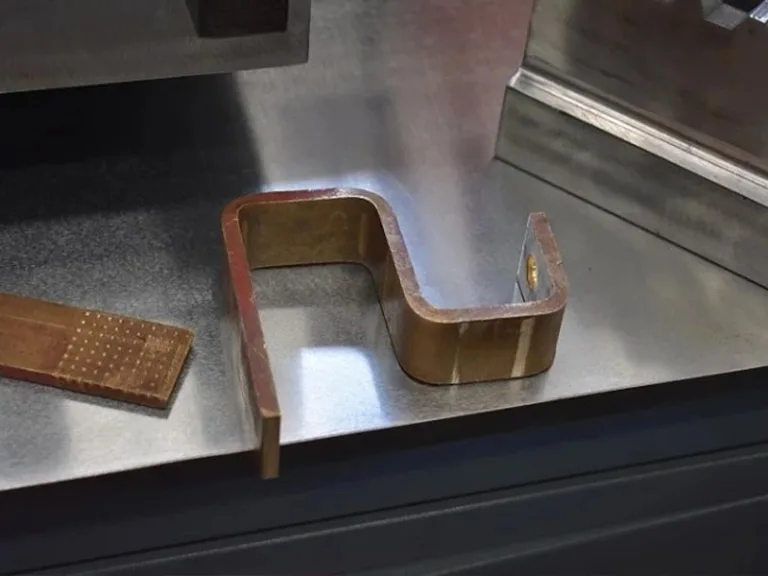

The SS-50-3CNC busbar punching machine’s bending unit is equipped with a PLC module, allowing the operator to input any angle (0°-180°), which the machine then automatically bends to. The bending angle and accuracy are independent of operator skill.

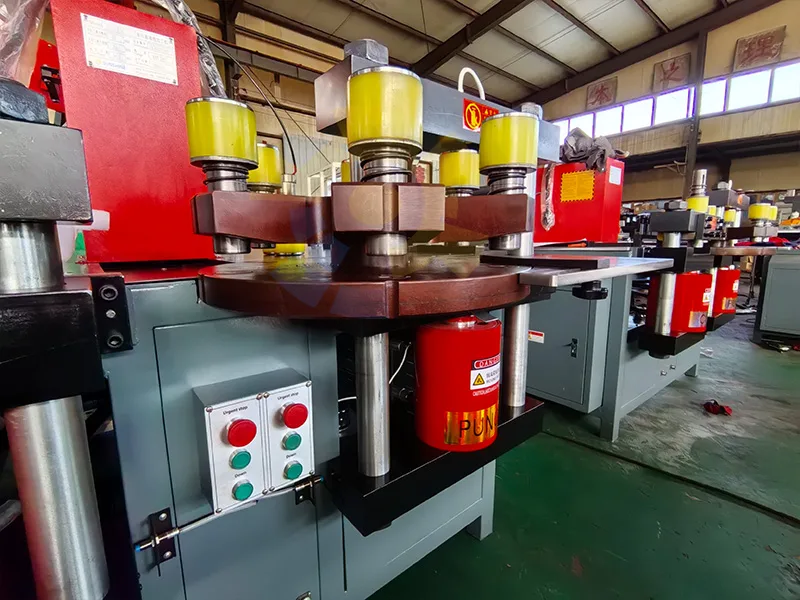

The punching unit of the SS-50-3CNC busbar machine adopts a 6-station turret design, which can quickly rotate and switch the punching die manually. Our factory also offers custom 4- and 8-station turrets.

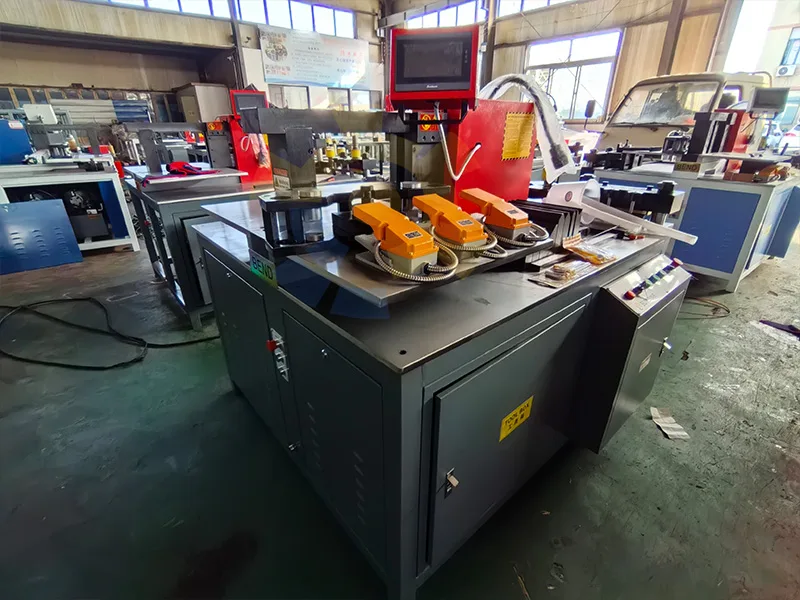

To enhance the efficiency of the SS-50-3CNC, SUNSHINE™ has introduced the upgraded SS-50-3CNC PRO copper busbar punching machine. Unlike the SS-50-3CNC, the SS-50-3CNC PRO can quickly and automatically locate busbar processing coordinates. Both the punching and cutting units are equipped with PLCs, resulting in processing efficiency exceeding that of a standard 3-in-1 busbar machine.
Product Video
parameters
| Model | SS-50-3CNC |
| Max. Thickness | 16mm |
| Max. Width | 250mm |
| Punching Station | 6 |
| Pressure | 500KN |
| Bending Error | ±0.3º |
| Punching Error | ±0.1.5mm/m |
| Punching Range | Φ4.3－Φ30 |
| Motor Power | 5.5KW*3 |
| PLC | Siemens for Bending |
| HIM Mobile Panel | 1set |
| Voltage | 380V 50HZ(default) |
| Language | Chinese/English |

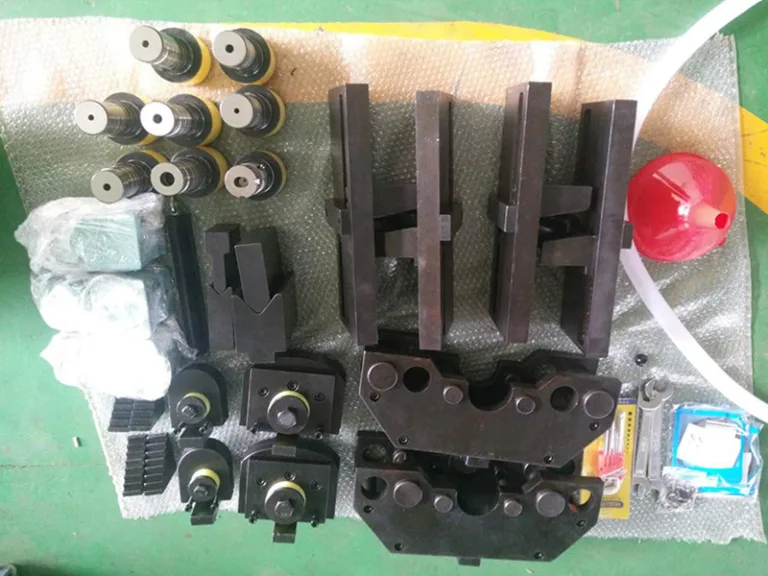

Mold List
| Round Punching Mold | Ø7, Ø9, Ø11, Ø13, Ø17 | 5sets |
| Oval Punching Mold | Ø11×15, Ø13×18, Ø17×21 | 3sets |

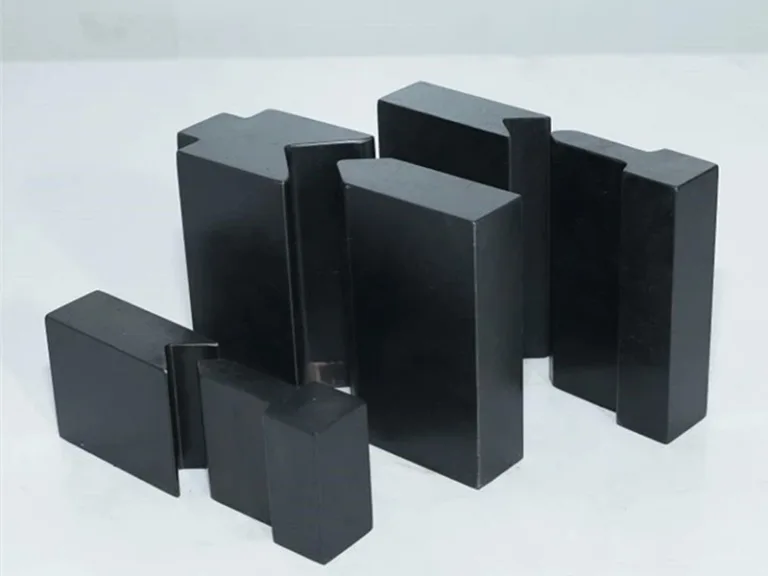

| Vertical Bending Mold | R3, R5, R10 | 3sets |
| U-SHAPE Mold | / | 1set |
| Horizontal bending mold | R80 or R50 | 1set |
| Embossing Mold | 160mm | 1set |
| Cutting Mold | / | 1set |
Note: The molds mentioned above are standard configurations. If you need molds with different specifications or for special busbar shapes, our technical team can customize them free of charge. To contact our technical engineer, please email lisa@busbarmac.com.
