NS-200B-4 Portable Busbar Bending Machine
function
Basic parameters
description

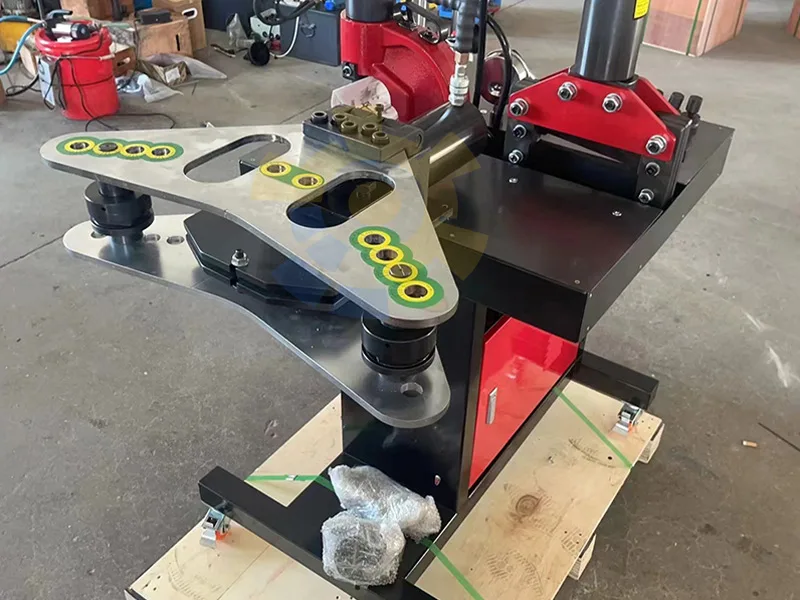

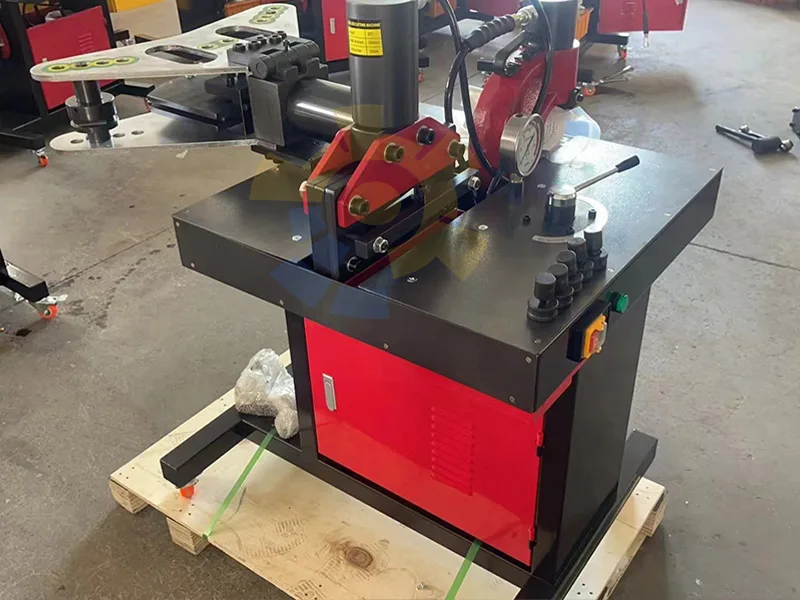

The NS-200B-4 portable busbar bending machine consists of a CH-70 punching tool, a CWC-200 cutting tool, a CB-200 bending tool, and a PLW-125 horizontal bending tool. Different from NS-200B-3, NS-200B-4 can be bent horizontally, with a maximum processing size of 12mm thickness and 125mm width. Due to its compact size, light weight, and ease of mobility, it is often used in confined spaces and on outdoor construction sites.

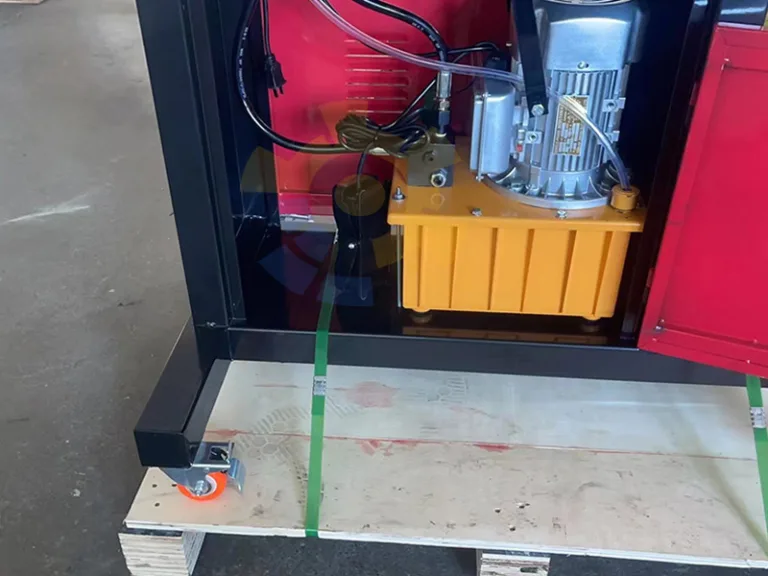

Equipped with a high-performance solenoid valve and automatic oil return, this portable busbar machine allows for easy switching between punching, cutting, and bending operations by manually rotating the reversing mechanism. It is ideal for small businesses and individual electrical professionals operating on a limited budget.
Product Video
parameters
| Model | NS-200B-4 |
| Max. Width | 12mm |
| Max. Thickness | 200mm |
| Max Vertical Bending Width/Thickness | 10mm/125mm |
| Bending Hydraulic Output | 30tons |
| Cutting Hydraulic Output | 20tons |
| Punching Hydraulic Output | 35tons |
| Throat Depth | 110mm |
| Rated Pressure | 70MPa(high)/ 7Mpa(low) |
| Rated Flow | 0.8L/min(high), 2.5L/min(low) |
| Oil Tank Capacity | 7L |
| Motor Power | 750W |
| Voltage | 220V 50HZ(default) |
Mold List
| Punching Mold | Φ7, Φ9, Φ10.5, Φ13.8, Φ17, Φ20.5 | 6sets |
Note: The molds mentioned above are standard configurations. If you need molds with different specifications or for special busbar shapes, our technical team can customize them free of charge. To contact our technical engineer, please email lisa@busbarmac.com.
