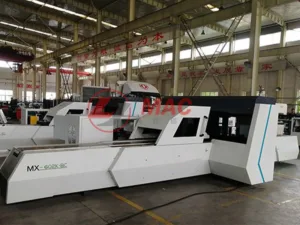

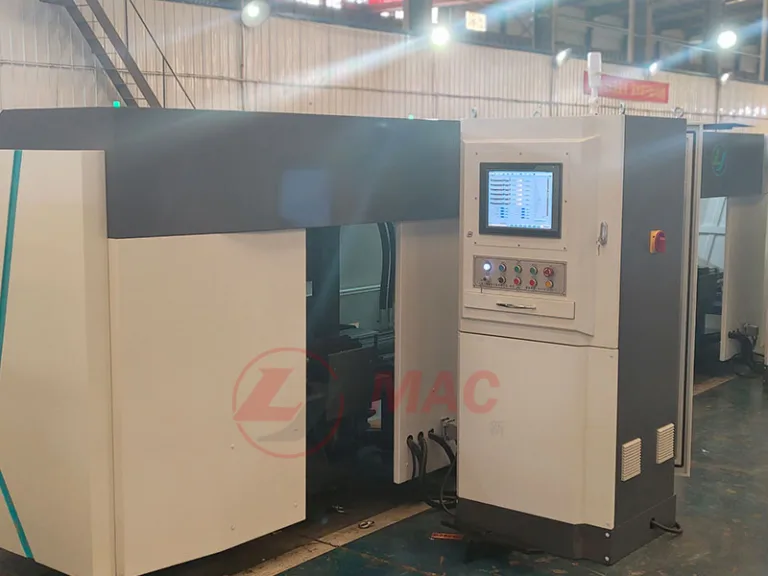

MX602K-8C CNC busbar punching shearing machine

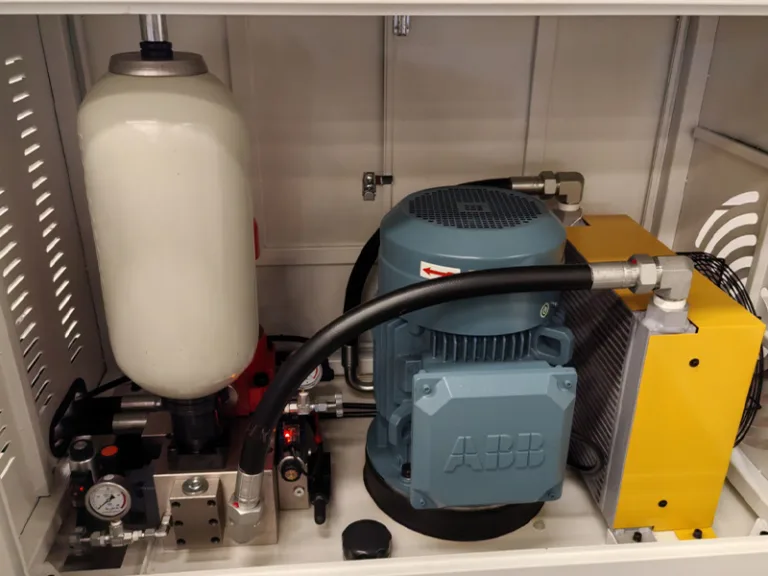

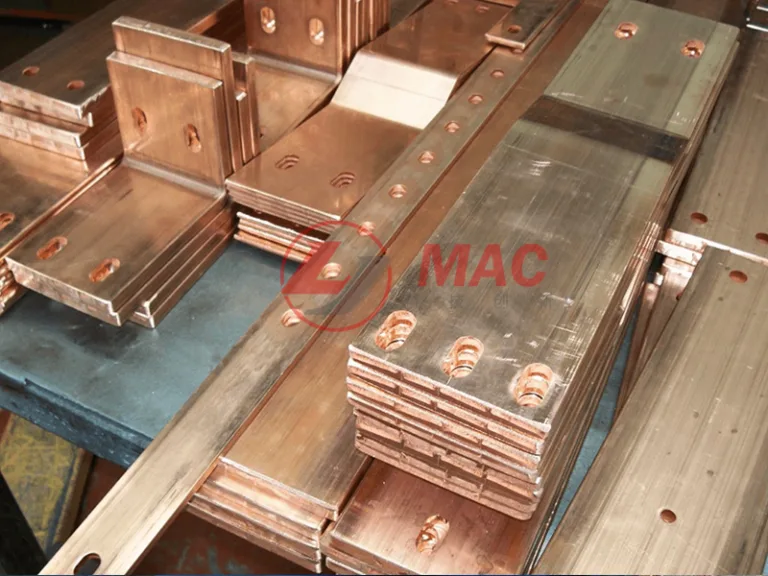

The MX602K-8C busbar punching and cutting machine utilizes a high-performance ABB motor, providing a maximum hydraulic force of 600 KN. It can process copper busbars with a max 15mm thickness * 200mm width * 6000mm length , and a mini 3mm thickness * 15mm width * 6000mm length.

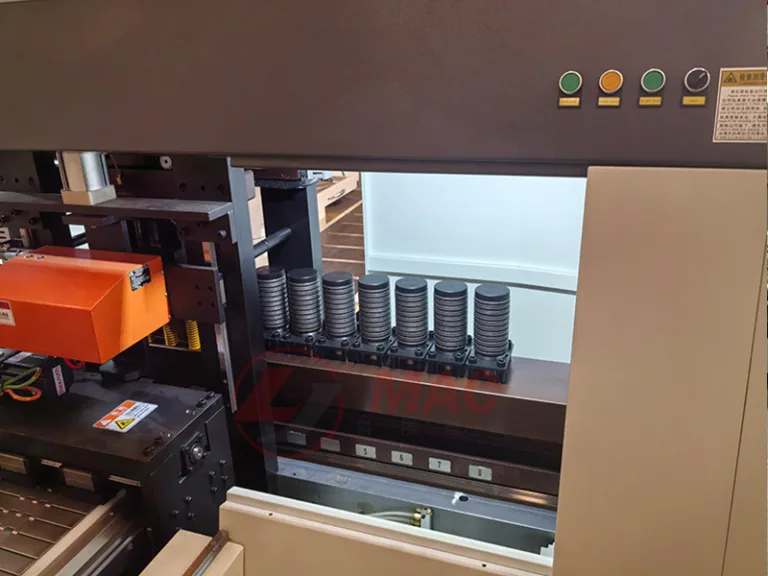

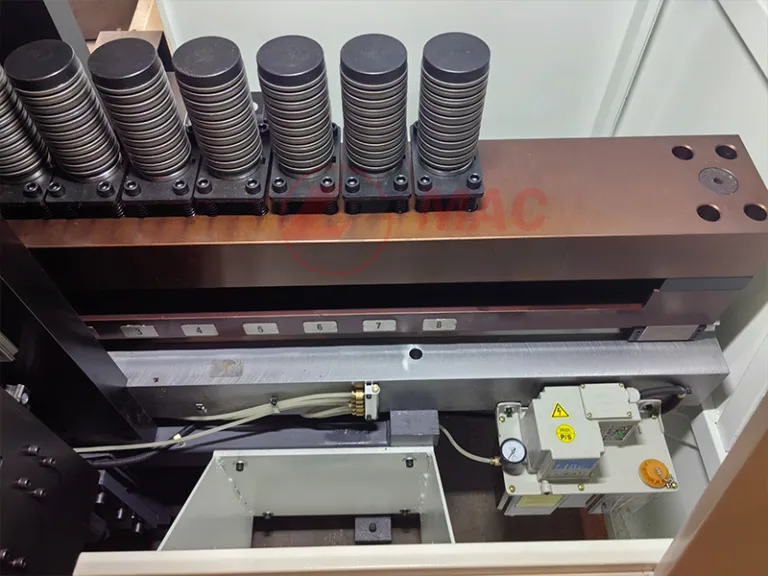

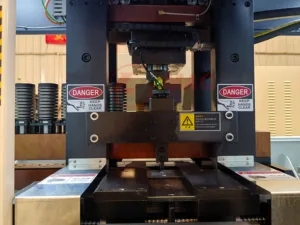

The mold library adopts a 9-station design, consisting of 8 punching stations and 1 cutting station. Its busbar processing efficiency and mold changing efficiency are significantly better than the 6-station mold library equipment on the market. Unlike the MX602K-7C, the MX602K-8C lacks the embossing function (used to increase friction in busbar connections).

• 9-station mold library
• 6-axis CNC control
• Servo motor-driven clamp

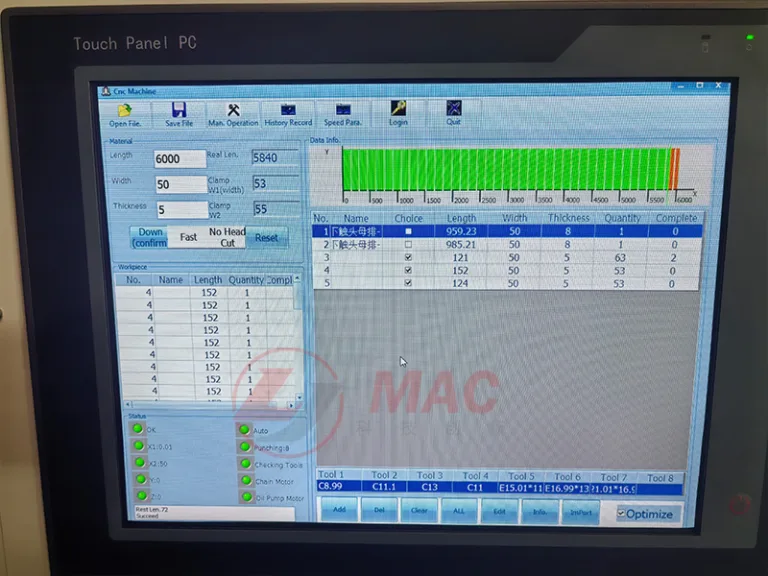

• Nesting software
• Lubrication system
• Intelligent order optimization
• Supports 2D/3D drawing import and editing

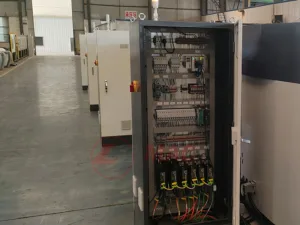

This busbar punching machine features 6-axis control, controlled by six servo motors. It also incorporates a closed-loop Beckhoff PLC. Its feedback mechanism enables real-time sensor data analysis. The powerful PLC computing power enables impressive control and precision for even the most complex busbar processing operations.

Note: Compared to open-loop Siemens PLCs, closed-loop German Beckhoff PLCs offer advantages in multi-axis motion control and powerful data processing capabilities.

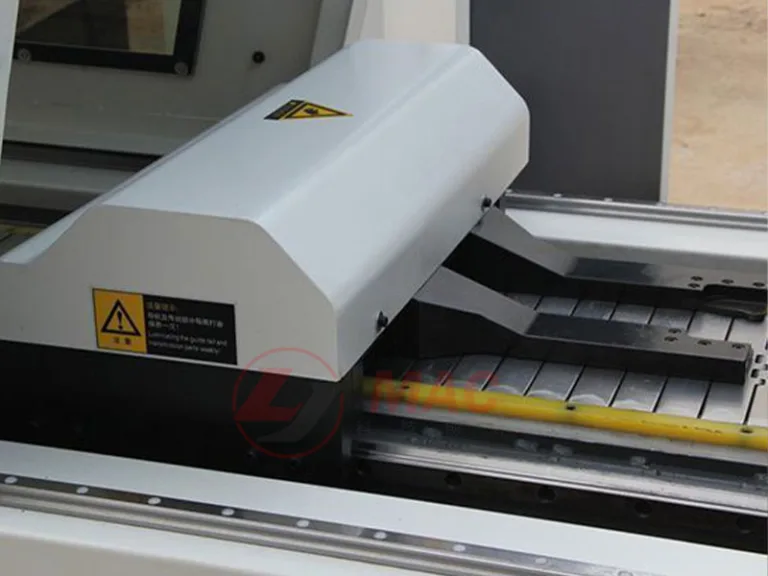

The feeding system utilizes a dedicated fixture, replacing the original hydraulic control with servo motor control, ensuring a complete processing process and minimizing error margins. The feeding unit is supported by linear guides (PEK, Italy) and AC servo motors (Rexroth, Germany), ensuring repeatability ± 0.1mm accuracy.

Note:  Compared to hydraulic clamps, servo clamps do not dissipate the 600 kN hydraulic pressure used for punching, resulting in an actual punching force less than 600 kN.

Optional

• Laser marking, dot peen marking
• Safety grating
• Automatic loading and unloading
• CNC chamfering machine (corner milling)
• Automatic sorting device

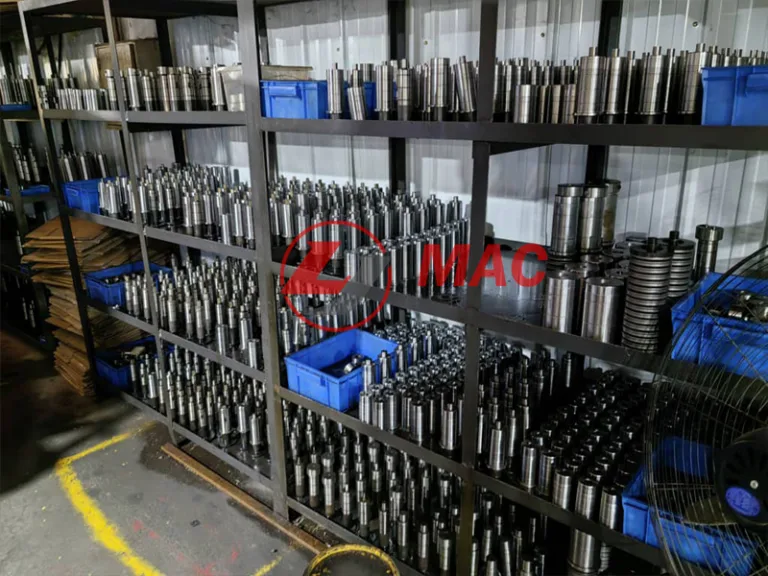

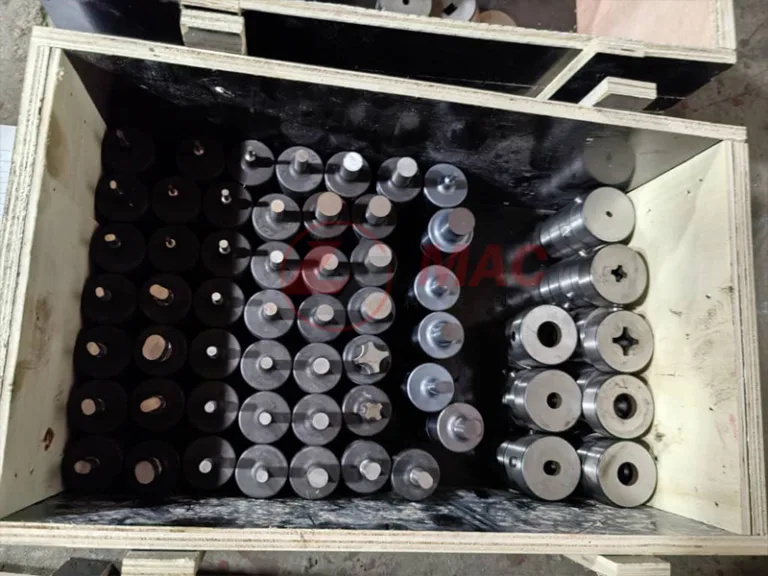

Note: The molds mentioned above are standard configurations. If you need molds with different specifications or for special busbar shapes, our technical team can customize them free of charge. To contact our technical engineer, please email lisa@busbarmac.com.
